CT Scanning

  • Created by Godfrey Hounsfield in 1972. He won a Nobel prize in 1979
  • CT image is created by revolving an XR tube around the patient at high speed, opposite a stationary ring of detectors of very high sensitivity.
    • Because of the sensitivity of the detectors a wide range of densities can be obtained
    • XR beam is fan shaped
  • range of densities in a normal film is around 20. In a CT image it is 2000
  • Hounsfield units
    • This is a measure of attenuation in CT scans
    • Air -1000 units
    • Water 0 units
    • Cortical bone +1000 units
  • range of Hounsfield units displayed can be manipulated by choosing a particular window width. Certain tissues can be highlighted by the appropriate window width; hence “bony windows” & “soft tissue windows”
CT Scanning, ct scanner

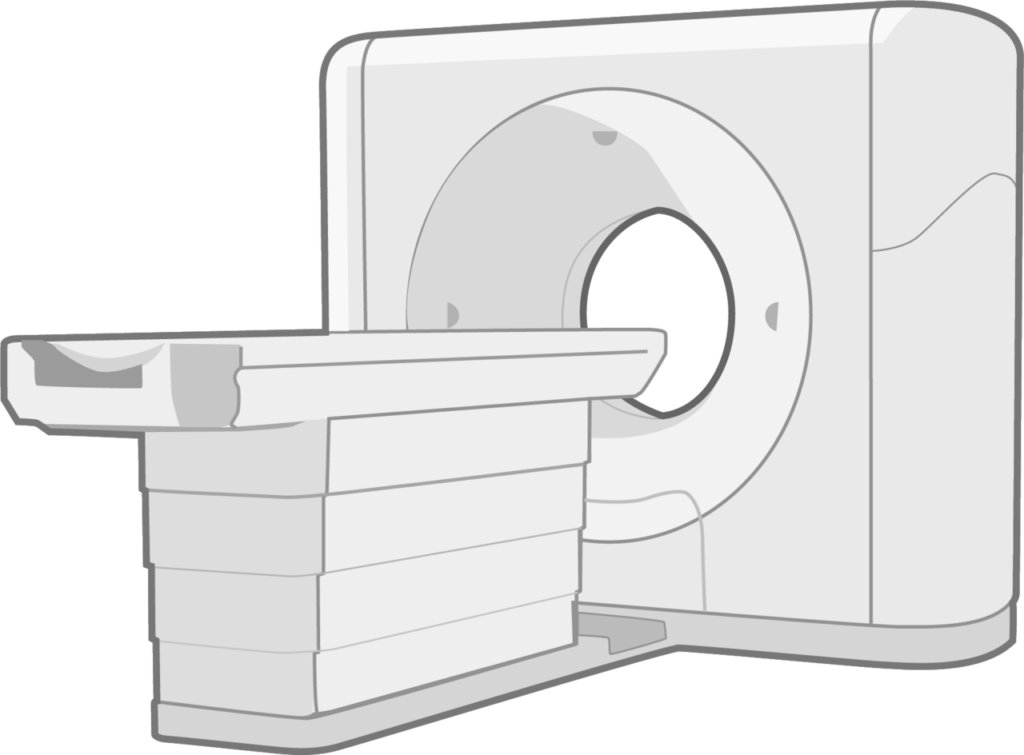

CT scanner. Image by Courtesy of NIAID Ryan Kissinger, Wikimedia Commons, Public domain.

Plane of imaging

  • image is obtained in the axial plane, but images can be reconstructed in any desired plane
